Leviton

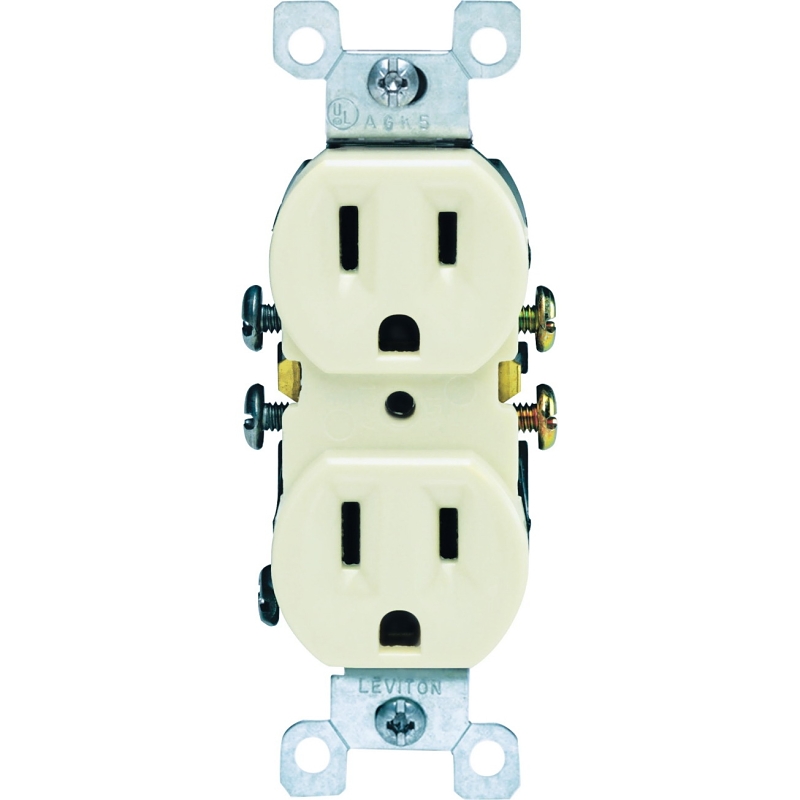

Leviton 303-05320-ICP Duplex Receptacle, Thermoplastic, Ivory, 2-Pole, 15 A, 125 V, Push-In, Side Wiring, 3-Wire
- Color: Ivory
- Current Rating: 15 A
- Dimensions: 4.20 in L x 1.33 in W x 0.94 in D
- Frequency Rating: 60 Hz
- Material: Thermoplastic
- Model #: 303-05320-ICP
- UPC #: 078477151273
- SKU: 9103995
Your shopping list will be used for pickup in-store
Product Details
Leviton's comprehensive residential-grade receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.Key Features
- Terminal screws accept up to #12 copper or copper-clad wire
- Quickwire push-in terminals accepts #14 solid copper wire only
- Double-wipe power contacts for maximum conductivity and plug retention
- Thermoplastic construction
- Heavy-gauge rust-resistant steel mounting strap
- Shallow design for maximum wiring room
- Break-off plaster ears for excellent flush alignment
- Captive mounting screws
- Break-off tabs allow easy two-circuit conversion
Item Specifications
| Color | Ivory |
|---|---|
| Current Rating | 15 A |
| Dimensions | 4.20 in L x 1.33 in W x 0.94 in D |
| Frequency Rating | 60 Hz |
| Material | Thermoplastic |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
|---|---|
| Number Of Wires | 3 |
| Operating Temperature | -40 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 12 AWG |
| Wiring Type | Push-In Side |
MORE DETAILS:
- Warranty: 2 Year Limited
